وصف المنتج
Welded wire mesh, known as hardware cloth. is a metal mesh made by welding horizontal and vertical wires together at their intersections. It can be made of electro galvanized wire,hot dipped galvanized wire, PVC coated wire and stainless steel wire, after welding or before welding. Welded wire mesh roll is more Acid and alkali resistance are widely used in industry, agriculture, aquaculture, construction, transportation, mining and so on. Such as machine guards, animal fences, flower fences, window guards, channel fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations.
مواصفات المنتج
Specification | ||||
Opening | Wire Diameter | Width 0.4-2m Length 5-50m | electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire | |
Inch | Metric Unit | |||
1/4"x1/4" | 6.4mmx6.4mm | BWG24-22 | ||
3/8"x3/8" | 10.6mmx10.6mm | BWG22-19 | ||
1/2"x1/2" | 12.7mmx12.7mm | BWG23-16 | ||
5/8"x5/8" | 16mmx16mm | BWG21-18 | ||
3/4"x3/4" | 19.1mmx19.1mm | BWG21-16 | ||
1"x1/2" | 25.4mmx25.4mm | BWG21-16 | ||
1-1/2"x1 1/2" | 38mmx38mm | BWG19-14 | ||
1"x2" | 25.4mmx12.7mm | BWG16-14 | ||
2"x2" | 50.8mmx50.8mm | BWG15-12 | ||
2"x4" | 101.6mmx101.6mm | BWG15-12 | ||
4"x4" | 101.6mmx152.4mm | BWG15-12 | ||
4"x6" | 101.6mmx152.4mm | BWG15-12 | ||
6"x6" | 152.4mmx152.4mm | BWG15-12 | ||
6"x8" | 15.4mmx203.2mm | BWG14-12 | ||
Note:Special specification can be made according to customers requires |
تفاصيل المنتج
نوع المنتج:
Surface finishing:
Electro galvanized
Hot dipped galvanized
PVC coated
Stainless steel wire
Hole sizes explained:
25.4mm is 1” holes are perfect for small animal’s enclosures, hutches, cages, chicken coops and rabbit runs
0.8mm is 2” holes are perfect for creating fencing for larger animals such as dogs.

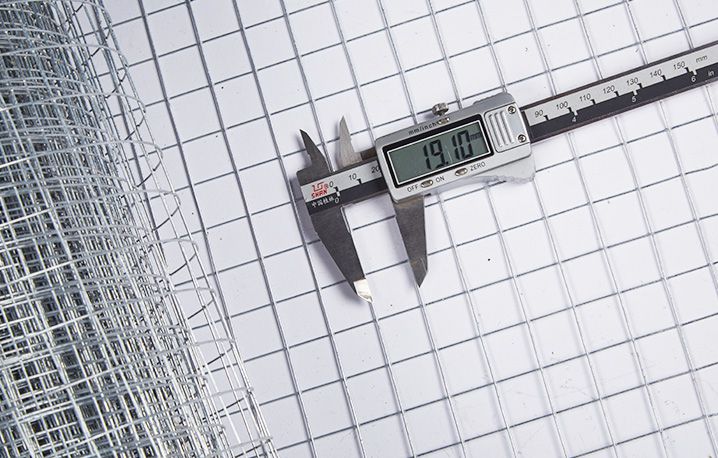

Product Feature
1. Provided as a roll for easier transport – simply unroll and cut as required
2. Galvanized with a zinc coating to give it a longer life against the elements
3. Resistant to corrosion and rust
4. Welded at each mesh join to ensure it is strong, long-lasting and secure
5. Available with a galvanized steel finish or PVC-coated galvanized steel finish or stainless steel wire welded

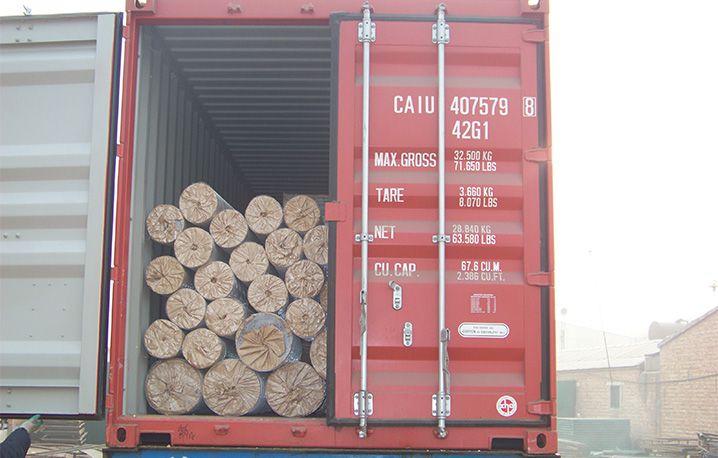

Product Packing & Shipping
Packaging Details
1. Water-proof then shrinked plastic bag;
2. Packed on the pallet or load in bulk.
