وصف المنتج
Epoxy coated wire mesh is composed of low carbon steel wires woven together and coated with epoxy resin making this resistant to corrosion and acids. It is mainly used in hydraulic or air filters as the supporting layers, it is the main part of the filters.It can also be used in windows and doors as insect screen. The epoxy coating can be applied to Plain Steel Wire Mesh, Aluminum Wire Mesh or Stainless Steel Wire Mesh.
In many fields it can be used in replacement of traditional mesh, particularly for replacing of SS wire mesh and Galvanized wire cloth with economic, eco-friendly and durable advantages.
مواصفات المنتج
Epoxy Wire Mesh Specifications
| No. | Substrate material | coating | specification | (mm)width | (m)length | Applied industry |
| 1 | Q195 | Black color &Oil resistance | 18x14/0.18 | 20mm-1250mm | 30m-914m | hydraulics |
| 2 | Q195 | Black color &oil resistance | 18x14/T0.18 | 20mm-1250mm | 30m-914m | hydraulics |
| 3 | Q195 | Black color &Oil resistance | 12x10/0.254 | 50mm-1250mm | 30-914m | hydraulics |
| 4 | Q195 | Black color &Oil resistance | 22x20/0.18 | 20mm-1250mm | 30m-914m | hydraulics |
| 5 | Q195 | White color &Oil resistance | 18x14/0.18 | 20mm-1250mm | 30m-914m | hydraulics |
| 6 | 5154A(H39) | Gray color &weatherproof | 17x15/0.26 | 20mm-1250mm | 30m-914m | air filtration |
| 7 | 5154A(H39) | Black color &Oil resistance | 18x14/0.21 | 20mm-1250mm | 30m-914m | hydraulics |
| 8 | 5154A(H39) | Black color &weatherproof | 18x15/0.28 | 20mm-1250mm | 30m-914m | window screen |
تفاصيل المنتج
نوع المنتج:
Usage: Filters
Material:Low Carbon Steel Wire, Stainless Steel Wire and Aluminum Alloy Wire
Woven Style: Plain Weave
Mesh: 16x16, 18x16,18x18,18x14,26x22,24x24,30x30
Diameter:BWG30,31,32,33,34,35,36,37,38,39.
Packing: Inner kraft paper, outside plastic cloth, packed in wooden pallet or case

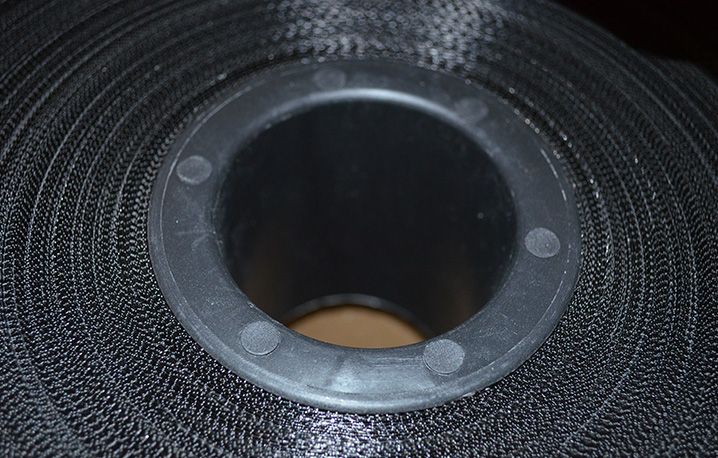

Product Feature
Oil Immersion Rust Proof
Strong Adhesion
Weatherproof
Light Weight & Easy to Clean
Soft& Easy to Shaped Structure
Corrosion Properties
Even Aperture
Flexibility

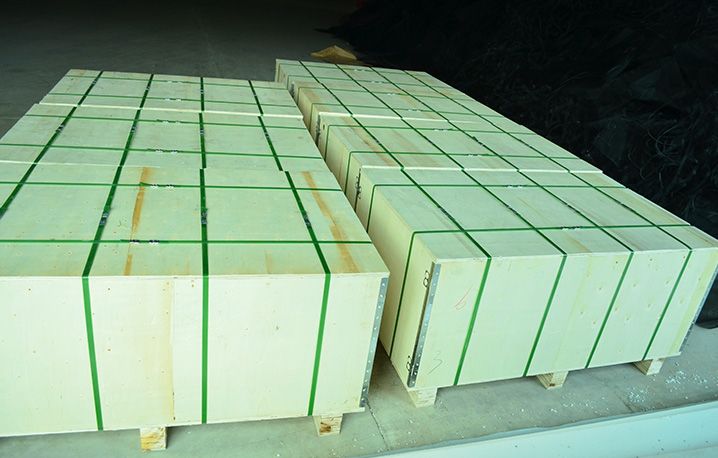

Product Packing & Shipping
1. The mesh is rolled onto the paper tube
2. First wrap the mesh in kraft paper then plastic film
3. Finally pack the mesh rolls in the wooden pallet or case.
التعليمات
Q: Are you manufacturer or trader?
A: We are manufacturer,and we are in fence field for more than 20 years.
Q: What's the lead time?
A: Normally our lead time is 20-30 days after we received the down payment. Urgent order can be negotiated.
Q: Can you provide samples?
A: Yes, we can provide samples with free charge, but the express cost need you pay first. When you placed the order, we will deduct the express cost from the contract amount.
Q: How do you control the goods quality?
A: We have the strict Quality Control System. And our quality inspector will record the production process and inspection from beginning to end in the form of photos or videos to you.
Q: Do you have quality guaranteed?
A: Yes, most of our products have a more than 10 years Quality Guarantee.
Q: Could you supply Door-to-Door Delivery?
A: Yes, we are very good at Door to Door Delivery, please inform me your detailed address, then I will quote you the freight cost to your home directly.
Q: How do we go to your factory for visiting?
A: Please inform me your flight time, we will pick you up at our nearby airport, then drive to our factory for visiting.
