وصف المنتج
3D Fence is also called the Curved Wire Mesh fence. This fence panel is more reinforced than ordinary welded mesh panel because of the trangle curved. 3D fence panel can be connected wit different posts such as, peach post, square post, rectangular post, round post, etc.
3D fence mainy used in residential, stadium. Warehouse, highway or airport service area. railway station and other areas. The 3d fence has the characteristics of beautiful appearance, no limitation of terrain fluctuation and convenient installation.
مواصفات المنتج
| Mesh Opening | Wire Thickness | Panel Width | Number of Folds | Height |
| 55x200mm, 50x200mm, 50x100mm, 75x150mm, 50x150mm, etc. | 3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm | 2.0m or 2.50m or 2.9m | 2 | 830mm |
| 2 | 1030mm | |||
| 2 | 1230mm | |||
| 2 | 1430mm | |||
| 3 | 1630mm | |||
| 3 | 1830mm | |||
| 4 | 2030mm | |||
| 4 | 2230mm | |||
| 4 | 2430mm |
| Post Type | Size | Thickness | Height |
| Round Post | 48mm, 60mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Square post | 50x50mm, 60x60mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Rectangular post | 40x60mm, 40x80mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Peach post, | 50x70mm, 70x100mm | 1.2mm, 1.5mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| I post | 42x70mm | 1.2mm, 1.5mm, 2.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
Note: Special size and specifications can be made according to customers’ requires.
تفاصيل المنتج
نوع المنتج:
Panel wire: Q195;Q235 Low carbon steel wire
Post: hot dipped galvanized tube, no coated tube
Bolts: M8 anti-vandal steel or stainless steel
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Color: Green, black, yellow, white,blue, etc.
Processing of welded wire mesh fence:
Material – Straightening & cut wire – Welding – Galvanizing – Powder coating – Packaging

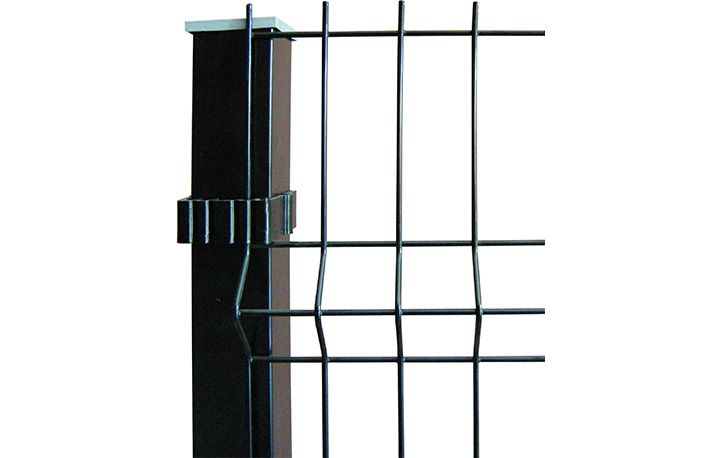

Product Feature
More beautiful shape.
Bending makes the mesh more stronger
Adopting galvanized or PVC spraying, anti-corrosion is very strong.
Very wide application and easy installation
A variety of specifications and colors are available
Mclassic Metal provides free samples and technical guidance.

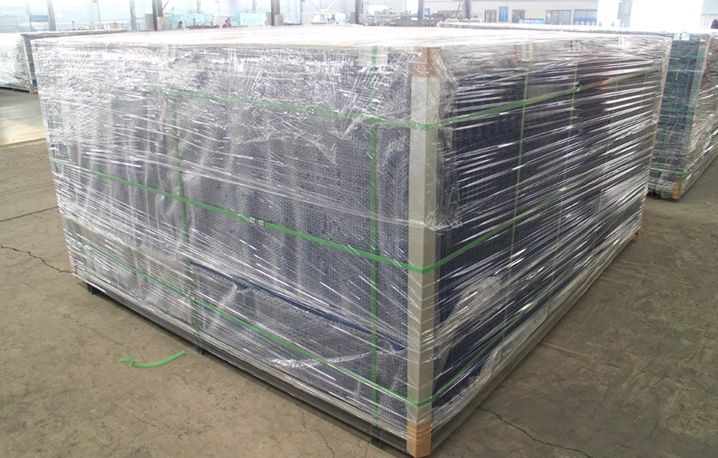

Product Packing & Shipping
Fence packing
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>Wood plate at the top of pallet to keep the under panel
<4>Pallet tube size:40*80mm tubes at the bottom vertical position
Post & Accessories packing
<1>The caps have been installed on the top of post, which reduce your labor cost and installing time
<2> Each post are packed by a long plastic bag avoiding damaged by friction
<3> All posts are packed by metal pallet for loading and unloading
Clips and screws are packed by sets, plastic film + carton box.
